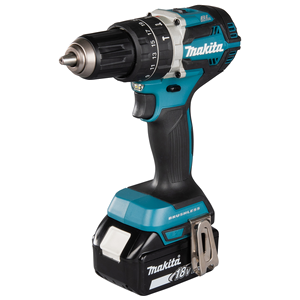

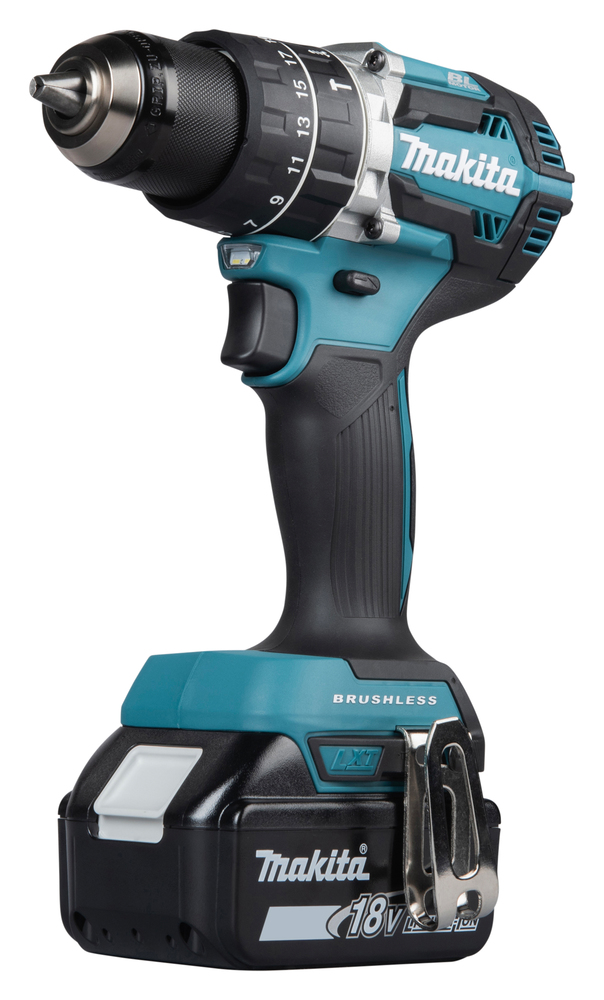

Slagboremaskine LXT®

Tekniske specifikationer

Akku spænding
18 V
LXT
Batteri
Li-ion
Kulfri motor
Omdrejninger

0 - 500 / 2000 min⁻¹



It is recommended to use this spec for the highest possibkle speed of the machine. If a machine has 3 speeds, these would be no load speed 1, no load speed 2 and no load speed max.

This solution is chosen to get the highest speed of any machine into the same tch spec, which makes it possible to compare the speeds of various machines and to mention only this speed on a shop display spec card.

Max. moment hårdt / blødt
54 / 30 Nm
Maximum drejningsmoment
65 Nm
Momentindstilling
21
Max. slagantal
0 - 7500 / 30000 min⁻¹
Max. borediameter i mur
13 mm
Max. borediameter i beton
13 mm
Max. borediameter i stål
13 mm
Max. borediameter i træ (Snegl bit)
38 mm
Max. borediameter i træ (Selvmatingsbit)
38 mm
Borekapacitet flad bit
38 mm
Borekapacitet hulsav
51 mm
Borepatron gevind
1/2"-20UNF "
Borepatron kapacitet
1,5 - 13 mm
Elektrisk bremse
Vibrationsniveau, Boring i metal
≤ 2,5 m/s²
Vibrationsusikkerhed, Boring i metal
1,5 m/s²
Vibrationsniveau, Boring med slag i beton
8,0 m/s²
Vibrationsusikkerhed, Boring med slag i beton
1,5 m/s²
Lydeffektniveau
99 dB(A)
Lydtrykniveau
88 dB(A)
Støjusikkerhed
3 dB(A)
Dimensioner (LxBxH)
182 x 79 x 261 mm
Vægt /målt
1,6 - 1,9 kg
Produktets nettovægt
1,2 kg
